Rehau Rio Flush Fit

The REHAU Rio flush fit window combines the realistic look and feel of timber, with all the benefits of UPVC

Created to offer competitive advantage to installers, Rio flush fit provides a solution that challenges traditional timber options. The TOTAL70 compatibility factor truly enables installers to fit and forget due to familiarity and ease of installation. a minute to write an introduction that is short, sweet, and to the point.

Download Brochure

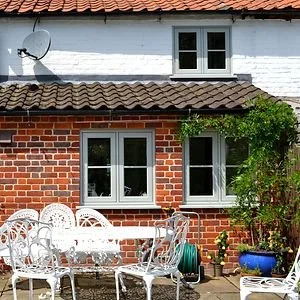

A patio scene with a white metal table and chairs outdoors against a brick house wall, with a green plant and a blue pot.

Living room with green accent wall, large windows, modern furniture, and decorative artwork. Showing UPVC windows

Close-up of a house with a red tiled bay window and a brick exterior, decorated with holiday garlands, and part of a white gutter and flush UPVC windows

Bright kitchen with white cabinets, large windows, pendant lights, and a kitchen island with a stool.

A large suburban house with Tudor-style black-and-white wood framing and brick accents, surrounded by a well-manicured lawn. Showing flush UPVC windows in a heritage setting.

Key Features

28mm glazing as standard with option for triple glazing

Traditional low level sculptured bead
Integral low level gasket
Eurogroove in same position as TOTAL70 ensures no specialist gearing required
Choice of frame depths: 52mm, 62mm, 72mm
Choice of frame styles: sculptured or chamfered
Three Jointing Options: Full mechanical joint, fully-welded joint, Mechanical/Weld joint (MechWeld)
External chamfer detail for smoother sightlines
Choice of sash depths: 63mm or a deep bottom rail at 82mm

Attention to detail

The Rio flush fit features clean lines and a true finish in order to ensure minimalist impact on the property’s exterior. A variety of styled hardware and fittings are available to guarantee consistency with the look of any building. Available in both chamfered and sculptured frame options, Rio can suit any installation. The Rio flush fit french window has a hidden dummy mullion end cap which is over moulded with a gasket for a more seamless finish. The detailed external chamfer on the sash allows for softer aesthetics and is in line with the REHAU Heritage vertical slider. It also utilises the Heritage bead for a low level sight line. REHAU Heritage Georgian bars can be used to provide a chamfered finish outside and sculpture inside for that traditional look.

Wood finish - The Rio turner oak flush fit window is a realistic alternative to traditional timber windows
Unrivalled performance - Independently tested at a UKAS test centre, Rio achieves the highest BSI ratings for wind, water, and air. Rio windows are also PAS 24 enhanced security accredited as well as offering exception noise reduction
Aluminium look - The Rio flush fit window offers a modern look with grey finish laminates and is a cost effective alternative to aluminium

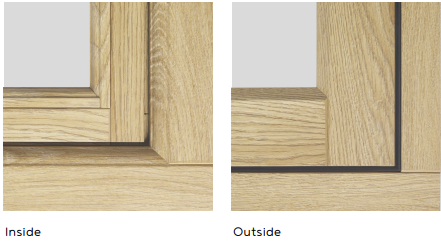

The full mechanical joint is the most realistic timber flush fit window appearance for ultimate authenticity.

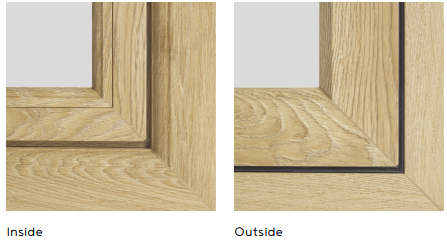

The fully-welded joint is the same as a standard casement window offering the most cost effective option.

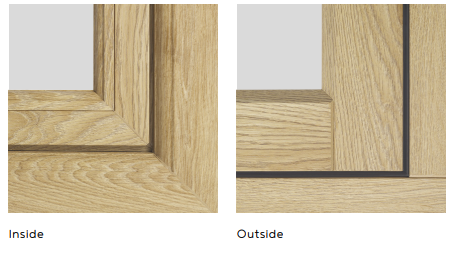

The MechWeld joint offers the appearance of mechanical-style timber joints on the outside with a fully welded detail inside.

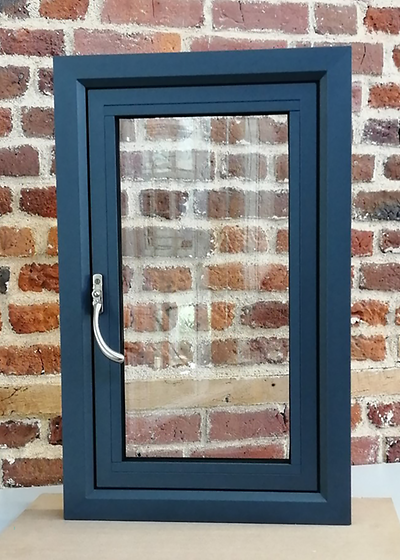

REHAU have introduced a 28mm Square Edged Bead as part of the Rio flush fit window range. The new Square Edge Bead allows for a more contemporary style flush fit window to be manufactured for greater versatility and styling. Available as a special-order option, the new Square Edge Bead can be used internally to complement a modern interior design with a grey foil, but keep a traditional timber look externally with a Turner Oak foil.

The Square Edge Bead will also fit with the Heritage vertical sliding window system. It provides a pvcu square bead option and works with the original aluminium bead where catches are fitted and if required for security standards. The Square Edge Bead design incorporates the low level detail that is already an integral part of the Rehau bead range. Currently available from stock, just ask your local sales contact for more information.

THE LASTEST INNOVATION . . .

REHAU have introduced a 28mm Square Edged Bead as part of the Rio flush fit window range. The new Square Edge Bead allows for a more contemporary style flush fit window to be manufactured for greater versatility and styling.

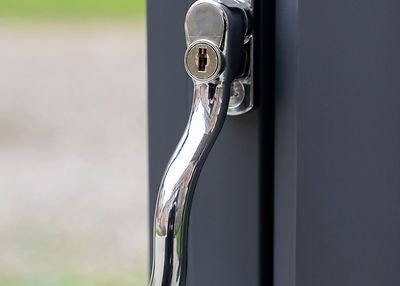

Monkey Tail and Tear Drop handles, pegs and stays.

Following the successful launch of the new Rio Flush Fit window, including a traditional timber style appearance. REHAU are pleased to compliment the window by offering key locking, beautifully designed monkey tail and tear drop handles, pegs and stays.

Colours & Finishes
Monkey Tail sets are offered in classic Black, Chrome, Satin Silver and Antique Black. Tear Drop sets in classic Black, Chrome, Satin Silver and Smoked Chrome.

Key Features
•   Key Locking Handles
•   Dummy and working stays
•   Dedicated Rio T70 Chamfered and Sculptured Pegs
•   Full Zinc Casting for solid high quality finish and longevity
•   Fully stocked and can be ordered and delivered with profiles
•   Competitively priced
•   10 Year Guarantee
•   240 hour Salt Spray Tested exceeding BSEN 1670:2007
• 25mm Spindle length for Rio
